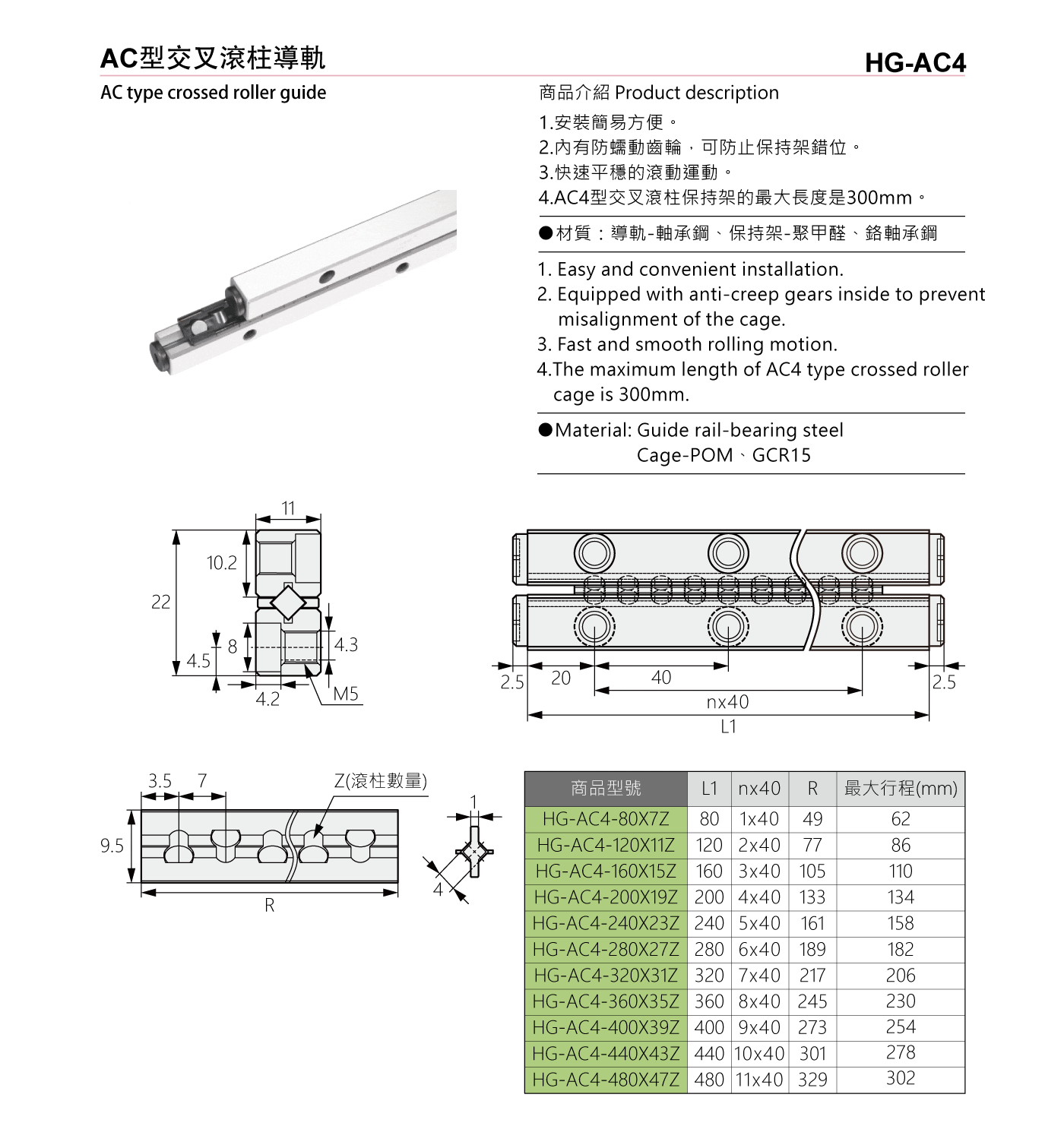

HG-AC4 AC型交叉滾柱導軌
| 產品編號 | 2D | 3D | 備註 | 代碼 | ROHS | 詢價 |
|---|---|---|---|---|---|---|
| HG-AC4-80X7Z | - | - | ||||
| HG-AC4-120X11Z | - | - | ||||
| HG-AC4-160X15Z | - | - | ||||
| HG-AC4-200X19Z | - | - | ||||
| HG-AC4-240X23Z | - | - | ||||
| HG-AC4-280X27Z | - | - | ||||
| HG-AC4-320X31Z | - | - | ||||
| HG-AC4-360X35Z | - | - | ||||
| HG-AC4-400X39Z | - | - | ||||
| HG-AC4-440X43Z | - | - | ||||
| HG-AC4-480X47Z | - | - | ||||
特點
- 1.安裝簡易方便。
- 2.內有防蠕動齒輪，可防止保持架錯位。
- 3.快速平穩的滾動運動。
- 4.AC4型交叉滾柱保持架的最大長度是300mm。
規格
- 材質：導軌-軸承鋼、保持架-聚甲醛、鉻軸承鋼
